Point d’accès WiFi Mesh TP-Link AC1200
| CARACTERISTIQUES MATERIELLES | |

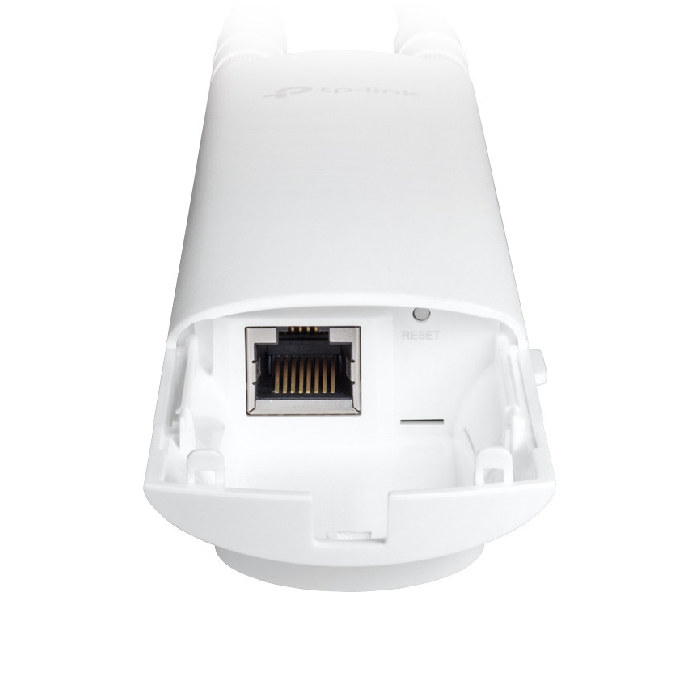

| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af PoE and Passive PoE) |
| Bouton | Reset |
| Alimentation | 802.3af/A PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Consommation | 10.5W |
| Dimensions (LxPxH) | 215.7*45*37.7mm (without antenna & mounting kit) 403.8*90.7*55.2mm (with antenna & mounting kit) |
| Antennes | • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi |
| Etanche | IP65 |
| Montage | Pole/Wall Mounting (Kits included) |
| CARACTÉRISTIQUES WIFI | |
| Standards WiFi | IEEE 802.11a/b/g/n/ac |
| Fréquence WiFi | 2.4 GHz, 5 GHz |
| Débits Maximaux | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Fonctions WiFi | Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Sécurité WiFi | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Puissance de transmission | • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) |
| ADMINISTRATION | |
| Omada App | Oui |
| Contrôleur Cloud Omada | Oui |
| Administration Centralisée | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Contrôleur Logiciel Omada | Yes |
| Accès Cloud | Yes |
| Alertes Email | Yes |
| Administration de contrôle d’accès des adresses MAC | Oui |
| SNMP | v1, v2c |
| Journal système local/distant | Oui |
| SSH | Oui |
| Administration par interface WEB | Oui |
| Administration Niveau 3 | Oui |
| Administration Multi-sites | Oui |
| Administration VLAN | Oui |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| AUTRES | |
| Certification | CE、FCC、RoHS |
